Product Description

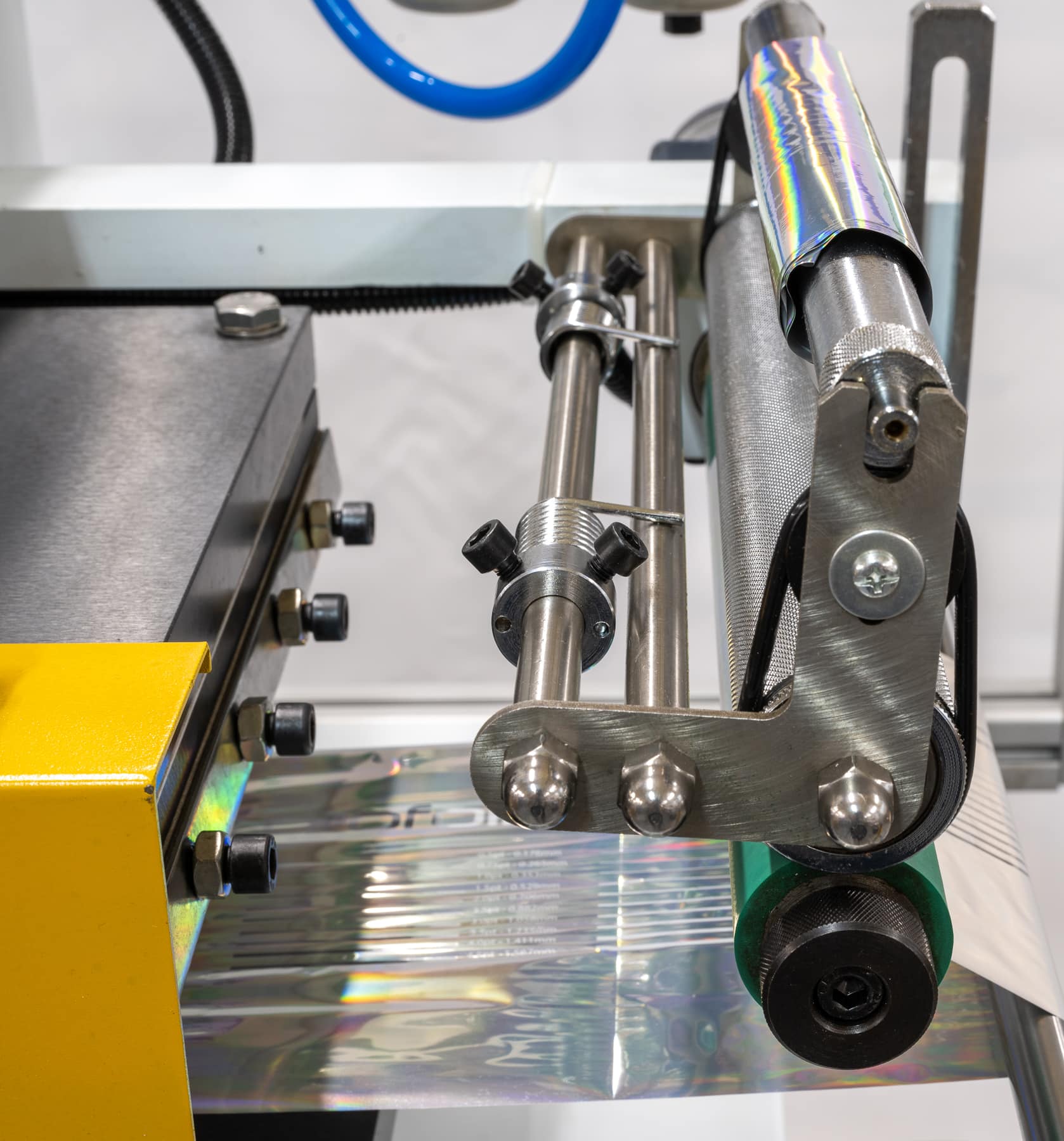

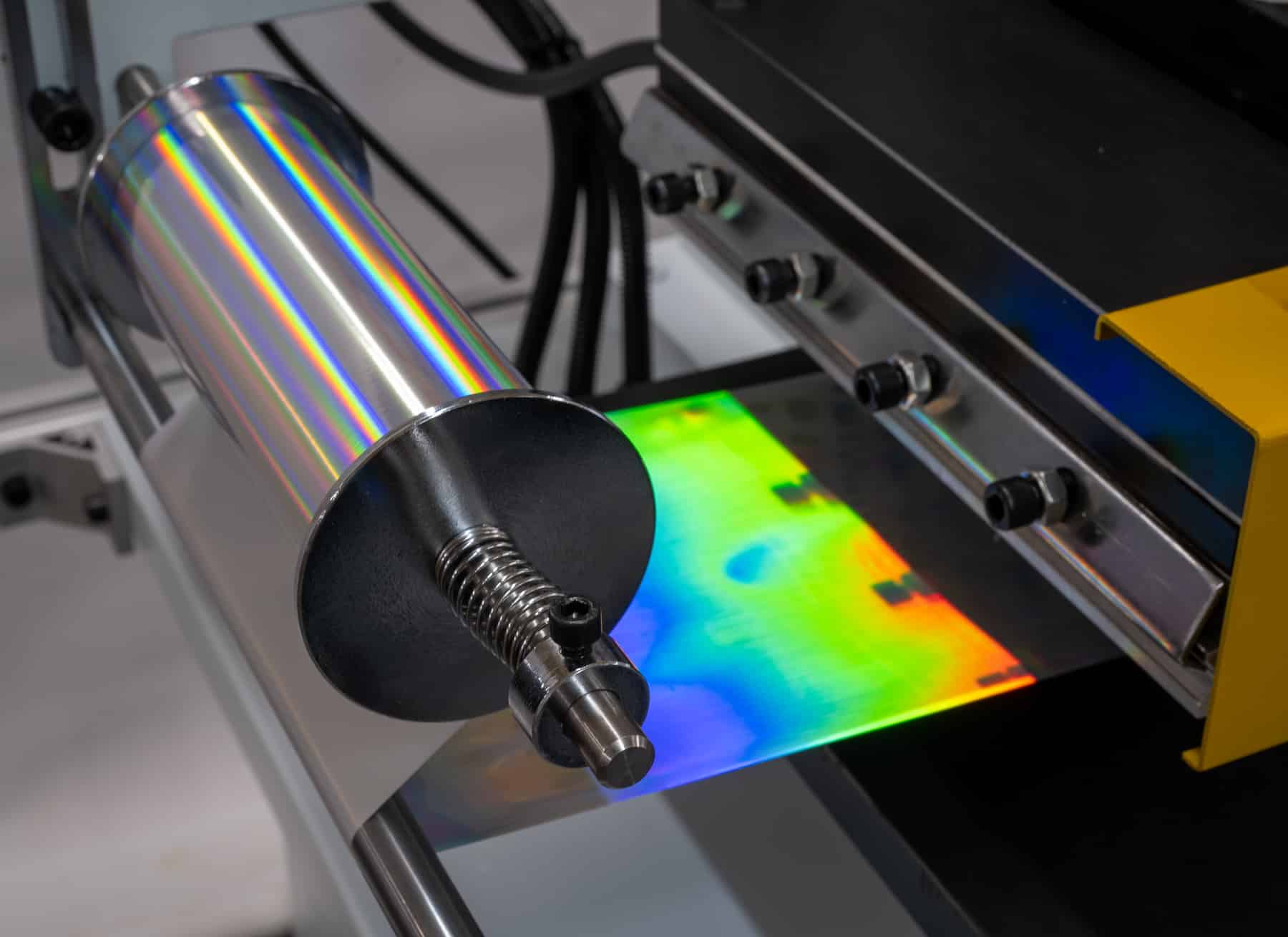

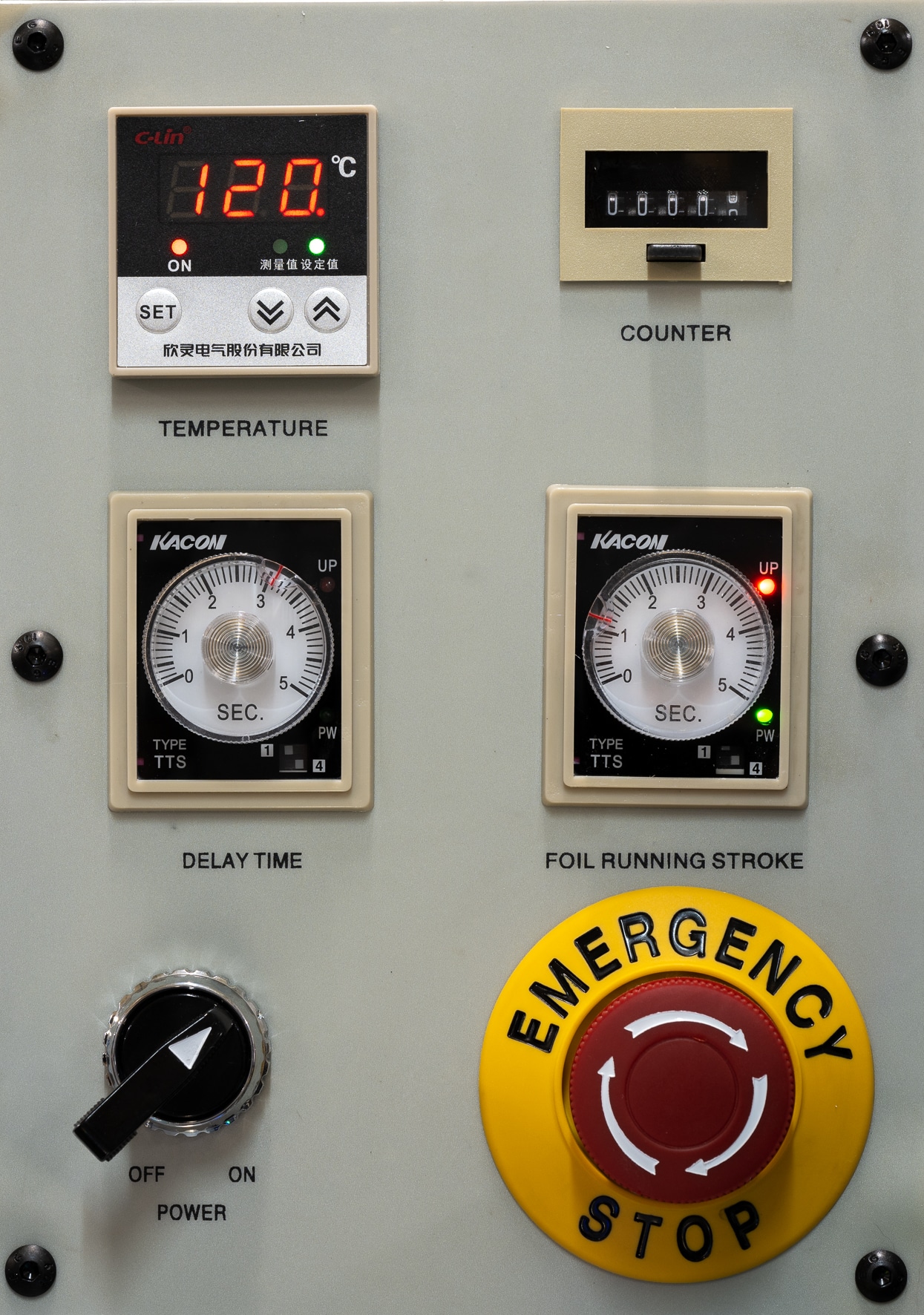

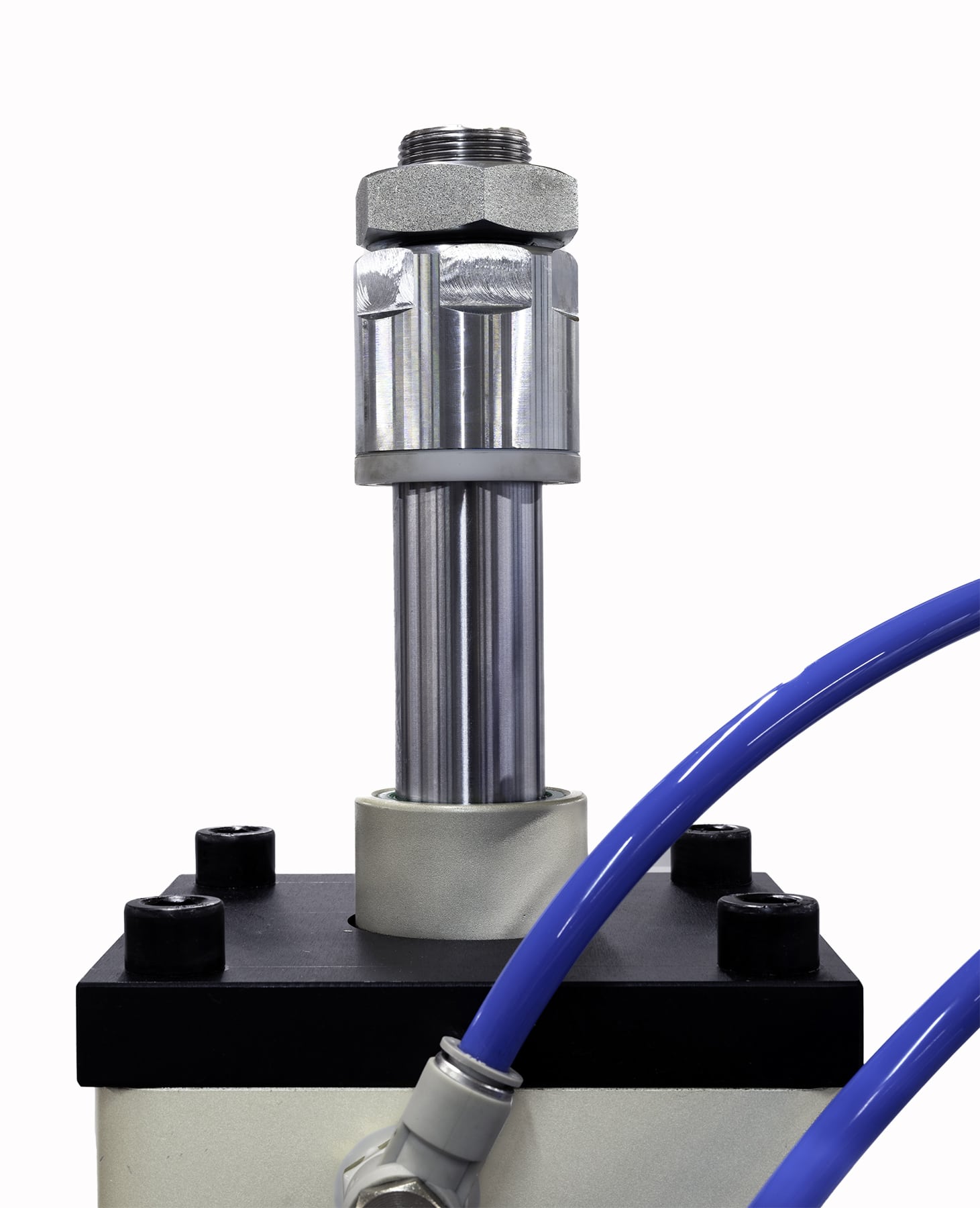

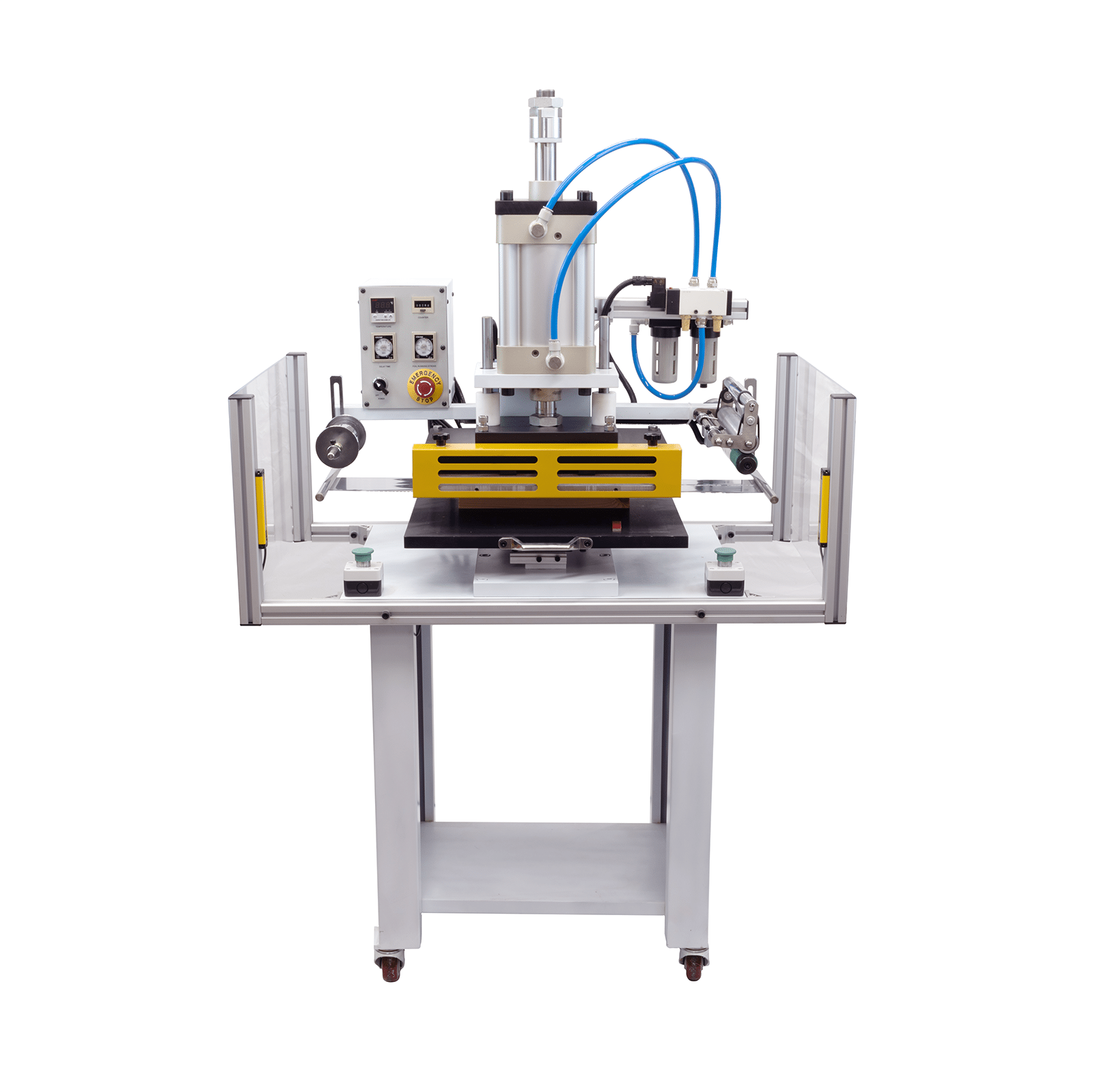

ProPress 450 pneumatic hot foil stamping machine from Profoil. This powerful upgrade from the hand press machine is a perfect choice for further professionalism and efficiency for short to medium run lengths on graphics, cards, papers, stationery, leathers and plastics. The automatic impression facility offers button-press impression movement with the ability to set dwell time (impression down time) with an increased pressure tonnage to 3 Tons over a larger impression stamping area. The auto-foil feed and digital heat control system are built in and the 450 comes mounted on a movable table base with laser-beam safety breakers. Also includes 1 x Low-Profile Toggle Hook accessories pack.
Max. Pressure | 3 ton |
Max. Stamping Size | 450 x 290 mm |
Max. Working Height | 80 mm |
Worktable Area | 510 x 340 mm |
Temperature | 0 ~ 300 ℃ |
Total Power | 3 kw |
Air supply Required | 0.8 ~ 1.2 mpa / 8 – 12 bar |
Weight | 320 kgs |
Dimension | 690 x 670 x 1680 mm |
Throat Size (behind stamping area) | 70 mm |
Die Fixing Method | Honeycomb upgrade included / Die Bonding Heat Tape
For use with toggle hooks or heat tape |
Registration Control | Profoil magnet system included |
